11 kW (E15) Electric 15 kW (E20) Electric 18.5 kW Electric 28 HP Petrol 38 HP Petrol
Cutting Capacity
Max. Log Diameter
100 cm
Max. Width of Cut
84 cm
Max. Cant Width
72 cm
Max. Depth of Cut
35 cm
Head Features and Options

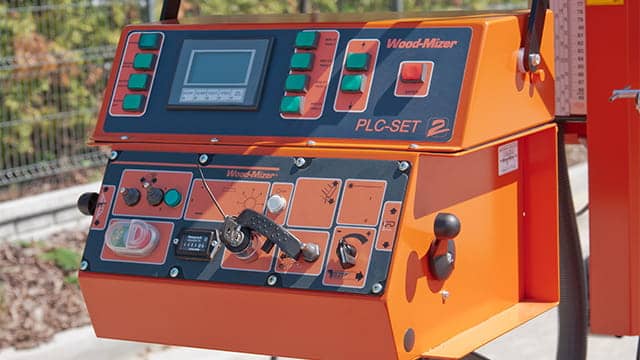

Setworks
SW10 SW PLC1 (for AC models) SW PLC2 (for AC models) Accuset2 (for AC and DC models)
Head Up/Down
Electric
Head Forward/Reverse
Electric
Blade Guide Arm
Electric
Blade Lubrication
LubeMizer
Blade Tension System
Hydraulic Tensioning Handle with Gauge
Debarker
Optional
Additional Options
Auto Clutch (for DC models) Laser Sight
Blade
Length
4330 mm
Width
32 mm 35 mm 38 mm
Blade Wheels
Blade Wheel Diameter
483 mm
Blade Wheel Type
Belted
Blade Wheel Material
Cast Iron
Bed Features and Options
Bed Construction
Monorail
Angled Bed Rails
Optional
Bed Extensions
Bed Extension: 0.5 m Manual or Hydraulic Bed Extension: 1.8 m, 3.6 m or 7.2 m
Trailer Package
Optional

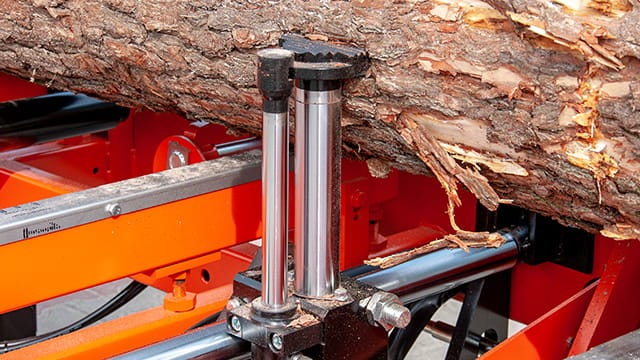

Log Handling
Manual
Toeboards Side Support Clamp Winch Log Turner Log Loader (Manual Pump)
STANDARD Hydraulic
3 Side Supports Central Clamp on Two Rods Log Turner Log Leveling Rollers Hold-down Clamps Log Loader
SUPER Hydraulic
Chain Turner 2 Vertical Side Support Central Clamp on Two Rods Log Leveling Roller Power Roller with Two Cylinders
Sawmill Features and Options
Frame Construction
Cantilever
Standards
CE
Options
Log Deck Incline Conveyor Roller Table Transfer Deck Absorption Roller
